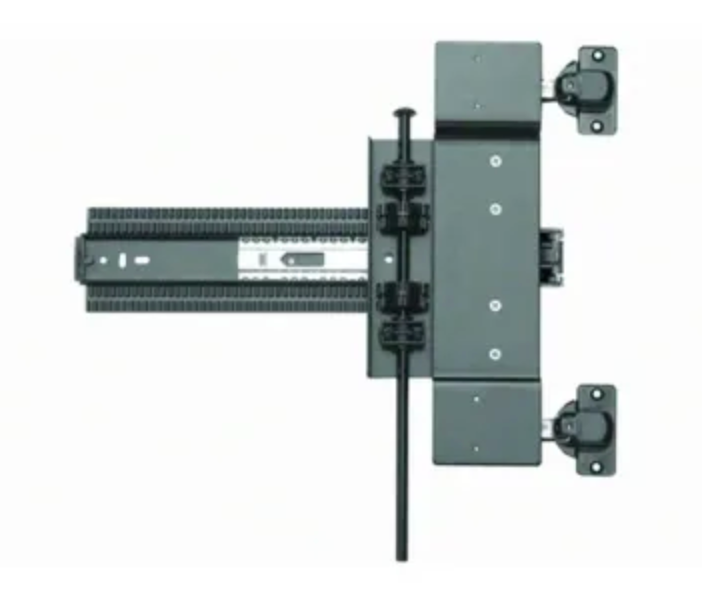

Knape and Vogt Pocket Door Full Overlay Kit for Mepla Hinges Black KV8091FULL34M

OPENBOX

Knape and Vogt Pocket Door Full Overlay Kit for Mepla Hinges Black KV8091FULL34M

Features:

• Intended for use with 8091 Series pivot slides and pinion shaft
• Requires that the interior of the cabinet have a partition wall
• Max weight of 75 lbs. per cabinet door
• Designed for doors up to 72" tall by 26" wide
• Includes a limited lifetime manufacturer warranty

Set Includes:

• Two (2) mounting brackets
• Four (4) Mepla overlay hinges
• Four (4) hinge mounting plates
• Four (4) hinge base covers
• Four (4) protective felt pads

Specifications:

• Cup Diameter: 35 mm
• Door Thickness: 3/4"
• Overlay: Partial, 3/4"
• Pocket Width: 1-3/4"
• 3 Way Adjustable: Yes
• Weight Capacity: 75 lbs.
• Material: Steel
• Quantity: 2
